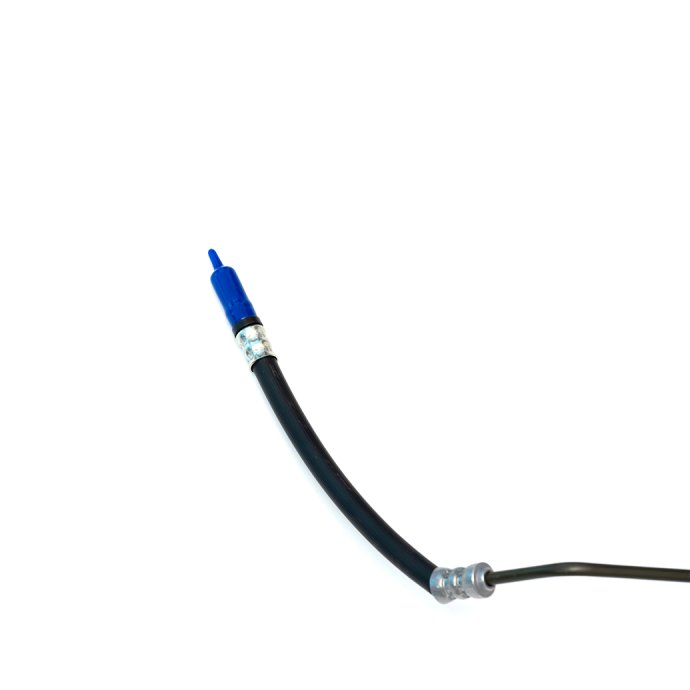

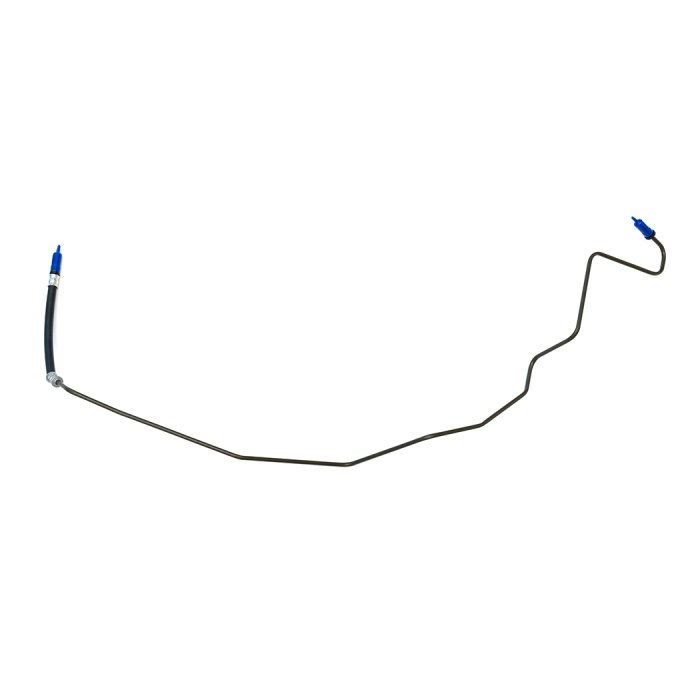

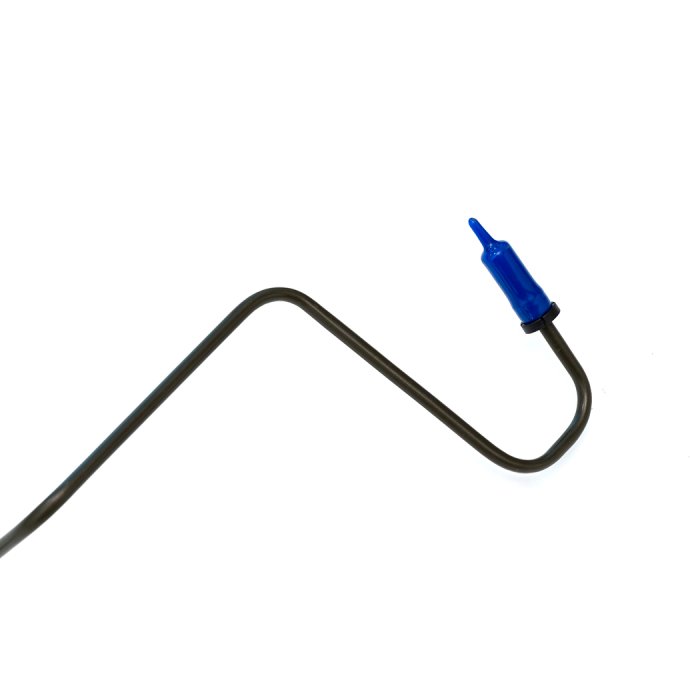

Rigid Brake Pipe

Introduction

Our automotive brake hard lines are engineered for precise, reliable, and long-lasting delivery of hydraulic brake fluid within vehicle braking systems.
Leveraging decades of manufacturing experience, we ensure exceptional pressure resistance, corrosion protection, dimensional stability, and leak-free performance required for safety-critical brake applications.

Brake hard lines are commonly manufactured from copper-nickel alloy (CuNi), galvanized steel (Bundy tube), or stainless steel, supporting advanced braking systems including ABS / ESP.

Key Features

• High hydraulic pressure resistance
  Ensures stable braking force transmission with minimal volumetric expansion.

• Premium corrosion protection
  CuNi and coated steel lines deliver long service life even in road-salt environments.

• Dimensional accuracy & rigidity
  CNC bending ensures precise routing and consistent brake response.

• Chemical compatibility
  Compatible with DOT3 / DOT4 / DOT5.1 fluids.

• Reliable sealing performance
  High-precision flare fittings prevent leaks under vibration and thermal cycling.

• Multiple material choices
  Bundy steel, stainless steel, and CuNi options available to meet performance & cost targets.

Specification Overview

Why Choose Us

We specialize in high-precision brake tube forming using CNC bending, automated flaring, leak-testing, and surface-coating technology.
Our engineers support complete lifecycle management—from product design, prototype development, validation, to mass production.

With strong material control and advanced processing capability, our brake hard lines deliver excellent stiffness, sealing, and durability, ensuring safe and consistent braking performance under harsh conditions.

Applications

Brake hard line assemblies are widely used in:

• Passenger cars (sedan, SUV)

• Light commercial vehicles

• Heavy-duty trucks

• Special-purpose vehicles

• Off-highway vehicles

System interface coverage:

• Master cylinder → ABS/ESC module

• ABS/ESC module → brake calipers/wheel cylinders

• Multi-circuit brake lines

• Custom brake conversion kits (AM)

Quality & Compliance

• Manufactured under IATF 16949 & ISO 9001

• Meets global standards:

• SAE J527（bundy steel）

• SAE J1047（hydraulic systems）

• ISO / VDA OEM specifications

• 100% pressure-tested & visually inspected

• Functional testing:

• Burst pressure

• Thermal cycling

• Salt spray corrosion

• Vibration fatigue

• Flare strength & sealing validation

Customization Options

• Material: Bundy steel / CuNi / Stainless steel

• Surface coating: PVF / Zinc / Galfan / Polymer

• Custom routing for platform integration

• Tube sizes: OD & wall thickness options

• Fittings: ISO / SAE double flare / custom

• Protective sleeves for abrasion

• Laser marking & color coding

• Available as assemblies or bulk cut-to-length tubing

Ordering & Sample Policy

Samples available upon request.
Lead time depends on structural complexity and quantity—contact us with your brake layout, drawing, or OE reference for quote.

• Sample lead time: 7–15 days (STD)

• Delivery terms: FOB / CIF / DDP available

After-Sales & Support

• Full engineering support for brake system integration

• PPAP, brake routing drawings, and validation reports

• 100% leak + dimensional inspection

• Warranty coverage per standard service conditions

Call to Action

Seeking high-performance brake hard line solutions for your vehicle platforms?
Contact us to discuss specifications, request samples, quotations, or OE development programs.
We deliver safe, durable, corrosion-resistant, and cost-efficient brake line assemblies for global automotive manufacturers.
